IEC_60599_TYPICAL_RATES_OF_GAS_INCREASE

IEC_60599_TYPICAL_RATES_OF_GAS_INCREASE

Formula​

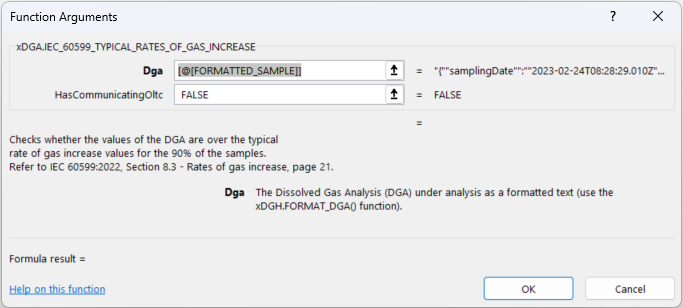

=IEC_60599_TYPICAL_RATES_OF_GAS_INCREASE(dga, hasCommunicatingOltc?)

Description​

Checks whether the values of the DGA are over the typical rate of gas increase values for the 90% of the samples.

Refer to IEC 60599:2022, Section 8.3 - Rates of gas increase, page 21.

If the 'hasCommunicatingOltc' parameter is not entered the value defaults to false.

Output​

The outcome of the application of this rule.

8.3 Rates of gas increase, Analysis for sample taken on Fri Feb 24 2023
  Hydrogen Rate of Change, The rate of change of Hydrogen is 0.00 ul/l/year which is lower than the typical value of 35 ul/l/year.
  Methane Rate of Change, The rate of change of Methane is 0.00 ul/l/year which is lower than the typical value of 10 ul/l/year.
  Ethane Rate of Change, The rate of change of Ethane is 0.00 ul/l/year which is lower than the typical value of 5 ul/l/year.
  Ethylene Rate of Change, The rate of change of Ethylene is 0.00 ul/l/year which is lower than the typical value of 32 ul/l/year.
  Acetylene Rate of Change, The rate of change of Acetylene is 0.00 ul/l/year which is lower than the typical value of 0 ul/l/year.
  Carbon Monoxide Rate of Change, The rate of change of Carbon Monoxide is 0.00 ul/l/year which is lower than the typical value of 260 ul/l/year.
  Carbon Dioxide Rate of Change, The rate of change of Carbon Dioxide is 0.00 ul/l/year which is lower than the typical value of 1700 ul/l/year.
