IEC_60599_DETECTION_LIMITS

IEC_60599_DETECTION_LIMITS

Formula​

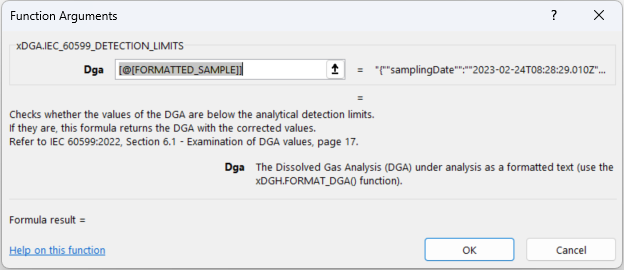

=IEC_60599_DETECTION_LIMITS(dga)

Description​

Checks whether the values of the DGA are below the analytical detection limits.

If they are, this formula returns the DGA with the corrected values.

Refer to IEC 60599:2022, Section 6.1 - Examination of DGA values, page 17

Output​

The sample formatted in the same way as the output of the FORMAT_DGA formula but with the minimum detection limits applied to the results.

{
  "samplingDate": "2023-02-24T08:28:29.010Z",
  "hydrogen": {
    "value": 300,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "methane": {
    "value": 50,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "ethane": {
    "value": 30,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "ethylene": {
    "value": 10,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "acetylene": {
    "value": 5,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "carbonMonoxide": {
    "value": 100,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "carbonDioxide": {
    "value": 1000,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "oxygen": {
    "value": 3000,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "nitrogen": {
    "value": 12000,
    "unit": { "name": "Parts per Million", "symbol": "PPM", "base": 1, "family": "Concentration" }
  },
  "gasMap": {}
}
