DUVAL_TRIANGLE_ZONE

DUVAL_TRIANGLE_ZONE

Formula​

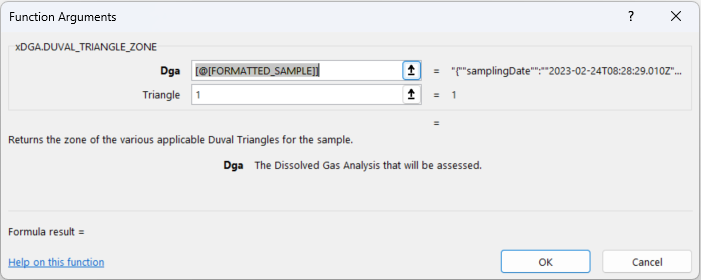

=DUVAL_TRIANGLE_ZONE(dga, triangle?)

Description​

Returns the zone of the various applicable Duval Triangles for the sample.

The parameter 'TRIANGLE' is an optional number indicating which triangle should be evaluated. Options are: 1, 2, 4 or 5. If no option is supplied it provides the output of the Triangle 1.

Output​

The output is the text outcome of Duval triangle zone where the sample sits.

DT => Mixtures of electrical and thermal faults.
