IEC_60599_CO2_TO_CO_GAS_RATIO

IEC_60599_CO2_TO_CO_GAS_RATIO

Formula​

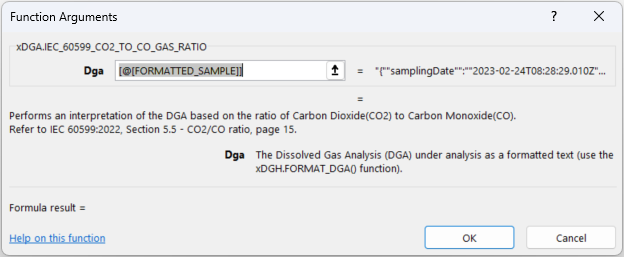

=IEC_60599_CO2_TO_CO_GAS_RATIO(dga)

Description​

Performs an interpretation of the DGA based on the ratio of Carbon Dioxide(CO2) to Carbon Monoxide(CO).

Refer to IEC 60599:2022, Section 5.5 - CO2/CO ratio, page 15

Output​

The outcome of the application of this rule.

5.5 CO2/CO ratio, Analysis for sample taken on Fri Feb 24 2023
  Probable paper involvement in a fault,
  This sample has a CO value of 1100.00 and a CO2/CO ratio of 1.82
          High values of CO (e.g. 1 000 ppm) and CO2/CO ratios less than 3
          are generally considered as an indication of probable paper
          involvement in a fault, with possible carbonization,
          in the presence of other fault gases.
